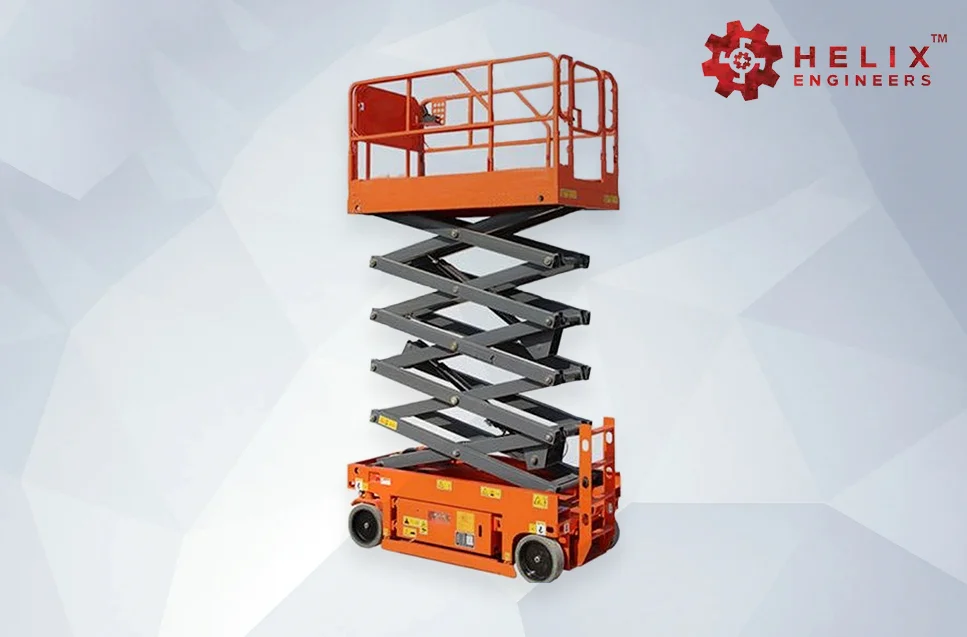

Self-Propelled Scissor Lift Table

Home   /   Products   /   Scissor Lift Table   /   Self-Propelled Scissor Lift Table
self-propelled-scissor-lift
Introduction

Self-propelled scissor Lifts are precisely engineered work platforms to offer safe and effective lifting of personnel tools, and materials to different heights in industrial, construction, and maintenance environments. They are driven machines, unlike stationary lifts. Maneuvered when upraised enabling workers to transfer smoothly between work points and without making the platform lower. Propelled by electric motors or diesel motors, self-propelled scissor lifts are available with quiet, emission-free operation for indoor application or outdoor use or durability of performance. They are small in size and sturdy. They have non-marking tires and, a small turning radius, which makes them ideal for navigating crowded work areas, rough surfaces, and tight aisles.

Installed with features like the use of a joystick, automatic pothole protection, and foldable guardrails, self-propelled scissor lifts are productivity and safety-conscious. The websites usually have extension decks to gain greater reach, heavy-duty steel guardrails, and overload. Fall protection systems to ensure the operators are safe when working at height. With working with heights of 3-plus meters to more than 13 meters and load weights of up to 350 kg, while these lifts can be wide-ranging. Warehousing tasks. This is due to their low-maintenance electric or hydro-electric drive. They feature systems, advanced diagnostics, and safety compliance, which make them a consistent option in the contemporary workplace.

Key Features
  • Multi-level vertical lifting
  • Strong steel construction
  • Smooth hydraulic operation
  • Space-saving design
  • Anti-slip platform
  • Safety lock features
  • Easy integration
  • Low maintenance
  • Simple controls
  • Ideal for high-level loading
Applications
  • Building Maintenance and Repair
  • Warehouse Inventory Access
  • Electrical and HVAC Installation
  • Construction Site Work
  • Exhibition and Event Setup
Product Features
Capacity 230/320/450 kg options available
Height 5.8 to 11.8 feet
Download Brochures
Description
Model Platform Height Working height Capacity Platform Size Operating
HE-035 6 Meter 7.7 Meter 500Kg 2100X830mm DC
HE-035 8 Meter 9.7 Meter 500Kg 2100X930mm DC
HE-035 9 Meter 10.7 Meter 500Kg 2100X930mm DC
HE-035 10 Meter 11.7 Meter 500Kg 2100X1230mm DC
HE-035 11 Meter 12.7 Meter 500Kg 2100X1230mm DC
HE-035 12 Meter 13.7 Meter 500Kg 2550X1530mm DC
HE-035 14 Meter 15.7 Meter 500Kg 2815X1530mm DC
