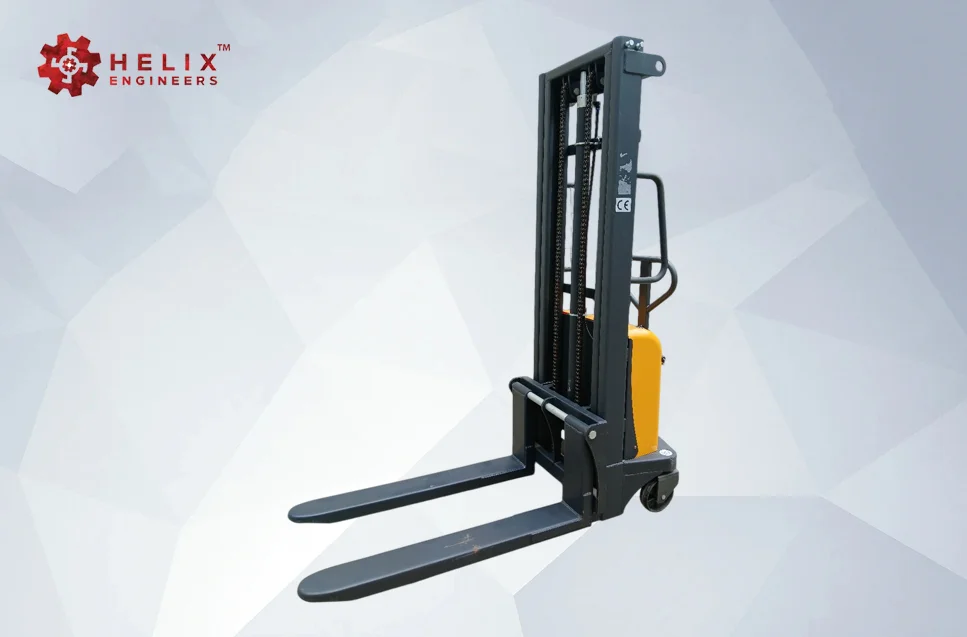

Electric Paper Roll Stacker
Introduction

Electric Paper Roll Stacker Manufacturer

We are India’s Biggest manufacturer, suppliers and exporters of Electric Paper Roll Stackers. An Electric Paper Roll Stacker is a specialised material handling device that is developed to help in the lifting, carrying, and packing of heavy paper rolls in an effective and safe way. It is common in printing, packaging, paper mills, and converting units where bulky roll of papers or other cylindrical types of materials should be handled with care and precision.

Description and Working

Electric paper roll stacker is driven by electric motor and hydraulic system that ensures that manual lifting is not required. It has adjustable forks or a specially purpose roll cradle which firmly holds and lifts paper rolls in a manner that they are not damaged. The intuitive control buttons or a joystick can allow the operator to easily control the lifting, lowering and movement of the rolls.

These stackers are available in walk-behind or ride-on models, depending on the operational requirement and load capacity. They are designed for smooth and effortless operation, even in confined spaces, ensuring higher productivity and worker safety.

Features
  • Electric operation for easy lifting and stacking
  • Ergonomic design to reduce operator fatigue
  • High load capacity suitable for various paper roll sizes
  • Durable construction for long service life
  • Smooth and precise hydraulic control for safe handling
  • Compact structure for easy maneuvering in tight spaces
Applications
  • Warehouse Inventory Management
  • Inbound & Outbound Logistics
  • Manufacturing Material Flow
  • Retail & Distribution Centres
  • Third-Party Logistics (3PL) Operations

An Electric Paper Roll Stacker is an efficient and reliable solution for handling heavy paper rolls, helping industries improve workflow, reduce manual effort, and minimize the risk of product damage. With its electric-powered operation and precision design, it ensures safe, smooth, and time-saving material handling for modern industrial environments.

Product Features
Lifting Capacity 1000 kg to 2000 kg (customizable)
Lift Height 1600 mm to 3000 mm (as per requirement)
Download Brochures
Technical Specification
Specification Details
Model Electric Paper Roll Stacker
Lifting Capacity 1000 kg to 2000 kg (customizable)
Lift Height 1600 mm to 3000 mm (as per requirement)
Load Center 500 mm
Roll Diameter 500 mm to 1500 mm
Power Source Battery operated (DC 24V / 210Ah)
Drive Type Electric (Hydraulic Lifting)
Mast Type Single / Double Mast
Fork / Roll Cradle Width Adjustable as per roll size
Lowered Mast Height 2000 mm (approx.)
Overall Length 1800 mm (approx.)
Overall Width 850 mm – 1000 mm
Wheel Type Polyurethane / Nylon
Travel Speed (Loaded / Unloaded) 4.5 km/h – 6 km/h
Battery Charger Built-in / External automatic charger
Control System Easy fingertip control for lift & lower
Brake System Electromagnetic automatic braking
Turning Radius 1500 mm – 1700 mm
Finish Powder coated corrosion-resistant body
Optional Features Custom roll clamp, side shift, safety guard, digital display
